Description

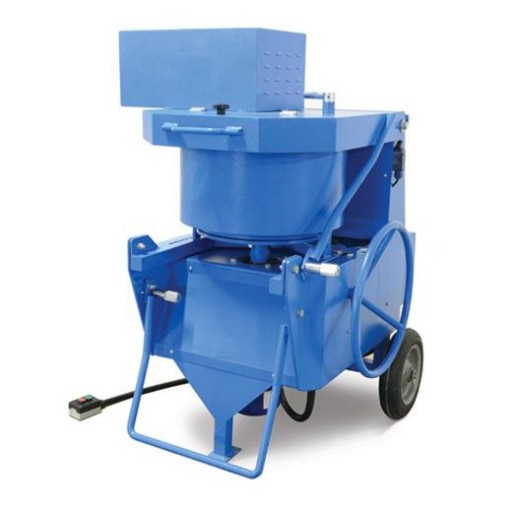

The efficient mixing of concrete is essential if quality specimens are to be manufactured. Pan type mixer re suitable for the mixing in small quantities of concrete in the laboratory.
The mixer are designed to give efficient mixing of both dry and wet materials.
The mixing pan is removable and tilts for easy access to the pan and emptying on completion of the mixing operation.
The total volume of the pan is 100 liters but the effective capacity of the mixer is 56 liters.
The mixer head lifts clear to provide maximum access to the pan and holds the mixing blades at a constant depth during the mixing operation. The lades can be adjusted to suit the different types and volume of materials to be mixed.
The pan type mixed are alos equipped with rubber wheels which provide high portability.
All parts of the Ip55 protected mixer are noncorrosive painted and galvanized.
Technical Specification:
| Product Code | Product Name | Dimensions (cm) | Weight(kg) | Power Supply |
|---|---|---|---|---|
| HR-C0800 | Pan Type Concrete Mixer | 95x100x120 | 200 | 380V,50-60 Hz, 3 ph |
| HR-C0805/50 Hz | Pan Type Concrete Mixer | 95x100x120 | 200 | 220V,50 Hz, 1 ph |
| HR-C0805/60 Hz | Pan Type Concrete Mixer | 95x100x120 | 200 | 220V,60 Hz, 1 ph |
| HR-C0810 | Pan Type Concrete Mixer, Double Engine | 95x100x140 | 230 | 380V,50-60 Hz, 3 ph |
| HR-C0810/50 Hz | Pan Type Concrete Mixer, Double Engine | >95x100x140 | 230 | 220V,50 Hz, 1 ph |
| HR-C0810/60 Hz | Pan Type Concrete Mixer, Double Engine | 95x100x140 | 230 | 220V,60 Hz, 1 ph |
